2 Ton Cable Pulling Clamp Cable Grip Wire Rope Grip For 4-22mm ACSR Conductor

Product Categories
SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD
Contact Now

2 Ton Cable Pulling Clamp Cable Grip Wire Rope Grip For 4-22mm ACSR Conductor

  • 1
  • 2

Brand Name : SHENHONG

Model Number : S-2000

Certification : ISO

Place of Origin : Jiangsu, China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 7 days after payment

Packaging Details : carton

Rated load(KN) : 20

Weight(kg) : 1.5

Cable : 4-22mm

Product name : 2 Ton Come Along Clamp Cable Grip

Material : Alloy Steel

Application : fasten

Contact Now

2 Ton Come Along Clamp Cable Grip Wire Rope Grip for 4-22mm ACSR Conductor

Application

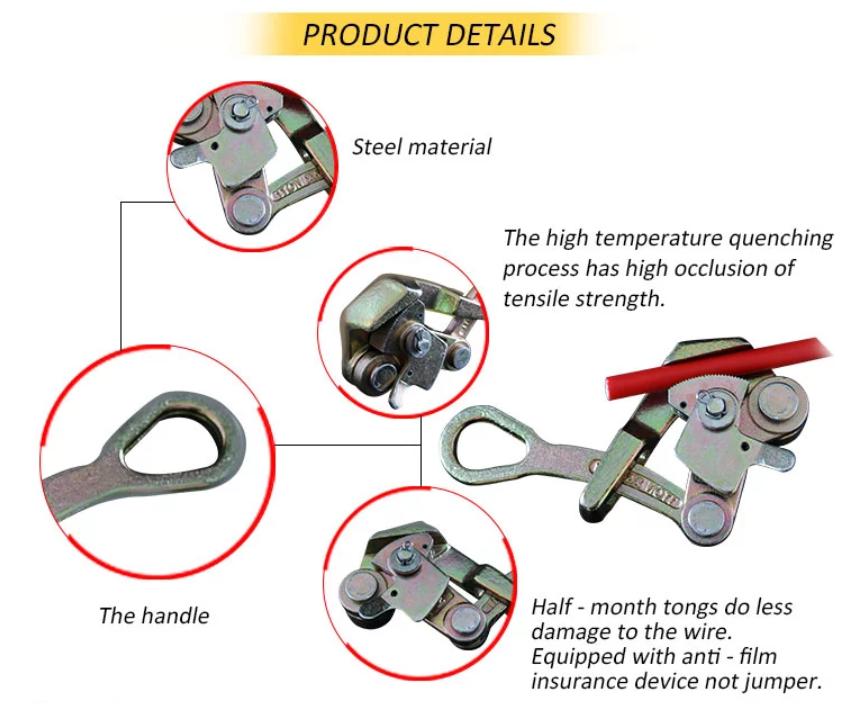

It is used of high-quality alloy steel forging forming, jaws are made by a special heat treatment.The jaws are partially equipped with a safety device to prevent jumpers.It is used for steel wire, ACSR or insulated wire.It is universal.

Secifications

1.Adjustment for overhead power lines sag and tighten wire.

2.Adopted high quality alloy steel with forging forming, jaw parts by special heat treatment, light weight, small size, easy to carry.

3.Jaw with a safety device, to prevent the jump line of steel strand.

4. Multi-purpose hand puller;
5. Triangle wire grip;
6. Dual peach (tortoise claw) wire grip;

Note:

1. S-1000C apply to steel rope and steel stranded wire;

2. S-2000CL apply to copper wire, ACSR or insulated wire;

3. S-3000CL apply to copper wire, ACSR or insulated wire.

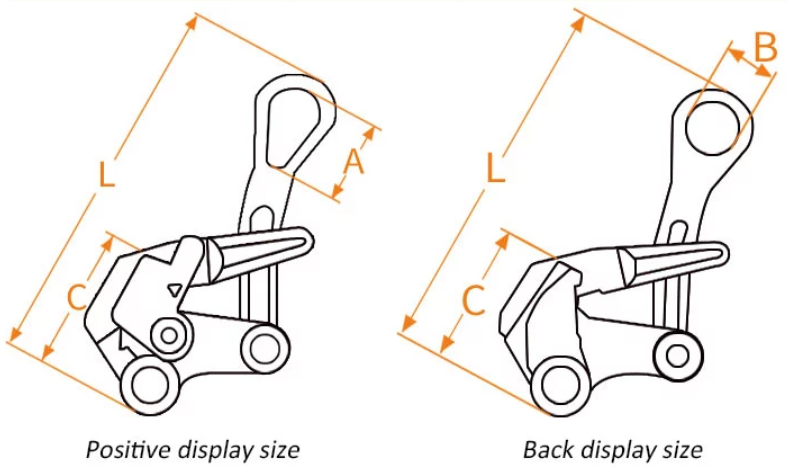

Technical Data

Model Rated load(KN) Applicable Range(mm) Weight(kg)
S-1000C 10 2.5-16 0.8
S-2000CL 20 4-22 1.3
S-3000CL 30 16-32 2.5

2 Ton Cable Pulling Clamp Cable Grip Wire Rope Grip For 4-22mm ACSR Conductor

2 Ton Cable Pulling Clamp Cable Grip Wire Rope Grip For 4-22mm ACSR Conductor

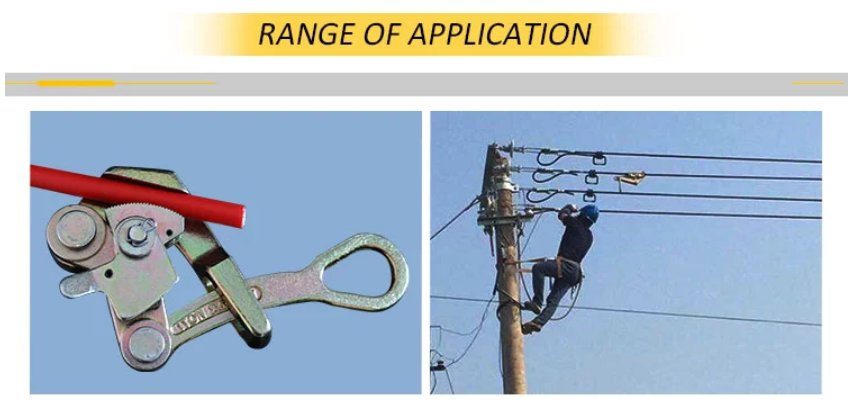

Application

Cable Wire Puller applications: construction, roads, bridges, metallurgy, mining, slope tunnels, wells and other infrastructure construction management protection of mechanical equipment.

2 Ton Cable Pulling Clamp Cable Grip Wire Rope Grip For 4-22mm ACSR Conductor

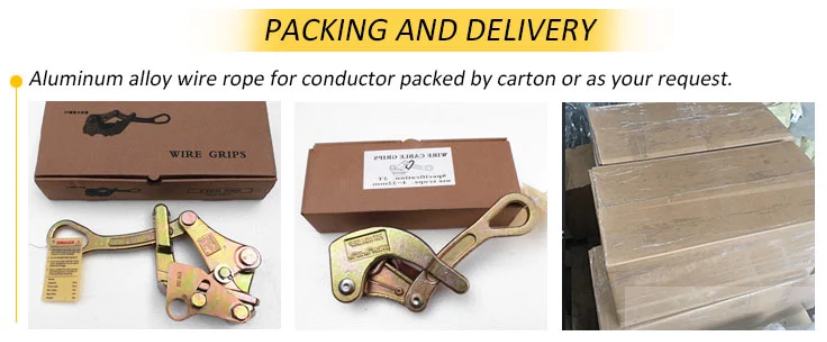

Packing and Delivery

2 Ton Cable Pulling Clamp Cable Grip Wire Rope Grip For 4-22mm ACSR Conductor
