Grounding pulley block for tensioning erect wires , ACSR or earthwire

Name: Grounding pulley block for tensioning erect wires ACSR or earthwire
Brand: SHENHONG
Price: 1 USD

Quality Grounding pulley block for tensioning erect wires , ACSR or earthwire wholesale

Brand Name : SHENHONG

Model Number : SJL-100, SJT-100

Certification : BV,ISO

Place of Origin : Jiangsu,China

MOQ : 1 piece

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 Piece/Pieces per Month

Delivery Time : ten days after deposit

Packaging Details : cartoon

Appplication : construction

Used : tensioning wire

Maximun current : 100A

Weight : 10-80kg

Warranty : one year

Material : aluminum alloy

Contact Now

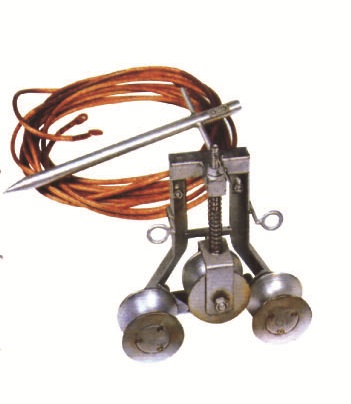

Grounding pulley block for tensioning erect wires, ACSR or earthwire

Application

It is used to eliminate induced static electricity in conductor or grounding wire spread when tensioning erect wires.

Notes:Grounding wire and grounding pile provide additionally.

Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.

Technical data of Grounding pulley block for tensioning erect wires, ACSR or earthwire

Model	Root diameter of sheave	Applicable conductor	Maximun current(A)	Material of sheave	Weight(kg)
SJL-100	Φ46	ACSR720 and below	100	cast aluminum	80
SJT-100	Φ50	Earthwire	100	cast iron	10

Grounding pulley block for tensioning erect wires , ACSR or earthwire

Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
