Name: ISO Underground Cable Installation ToolsReel Payout Stand for Power Construction
Brand: Shenhong
Price: 1 USD

Brand Name : Shenhong

Model Number : SIL

Certification : ISO

Place of Origin : Jiangsu,China

MOQ : 1 set

Price : US $150-500 / Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 sets per month

Delivery Time : 15 work days after deposit

Packaging Details : Export case

Type : Simple Reel Payout Stand

Model : SIL

Color : Can be ordered

Rated load(KN) : 10-50

Weight : 22-44kg

Range of adjustable height(mm) : 450-1300

Contact Now

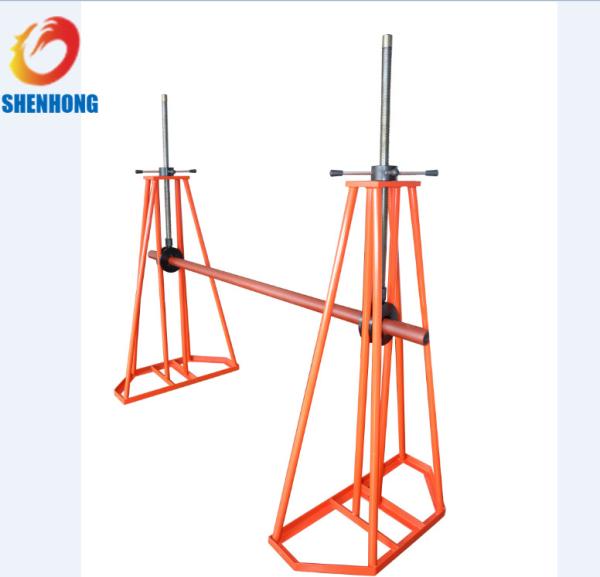

Jiangsu China Simple Reel Payout Stand for Power Construction

Features:To adjust reel by screw mandrel,light,handy and practicable. It fit releasing wire manually.

Notes:It has to be used in pairs.

Technical Data

Model	Rated load(KN)	Range of adjustable height(mm)	Weight(kg)	Feature
SIL-1	10	450-650	22	pillar style
SIL-3	30	600-900	24
SIL-5	50	900-1300	27
SIK-3	30	400-1000	30	Frame style
SIK-5	50	710-1270	44	Frame style
SIL-3A	30	620-1000	28	Pillar base frame style
SIL-5A	50	900-1300	35	Pillar base frame style

We can make products with special specification as your requirements.
