Brand Name : Shenhong
Model Number : SI
Certification : ISO
Place of Origin : Jiangsu,China
MOQ : 1 set
Price : US $400-1,500 / Set
Payment Terms : L/C, T/T, Western Union
Supply Ability : 500 sets per month
Delivery Time : 15 work days after deposit
Packaging Details : Export case
Type : Hydraulic reel drum
Model : SI-10
Color : Can be ordered
Capacity : 10T
Weight : 200kg

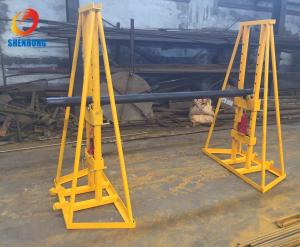

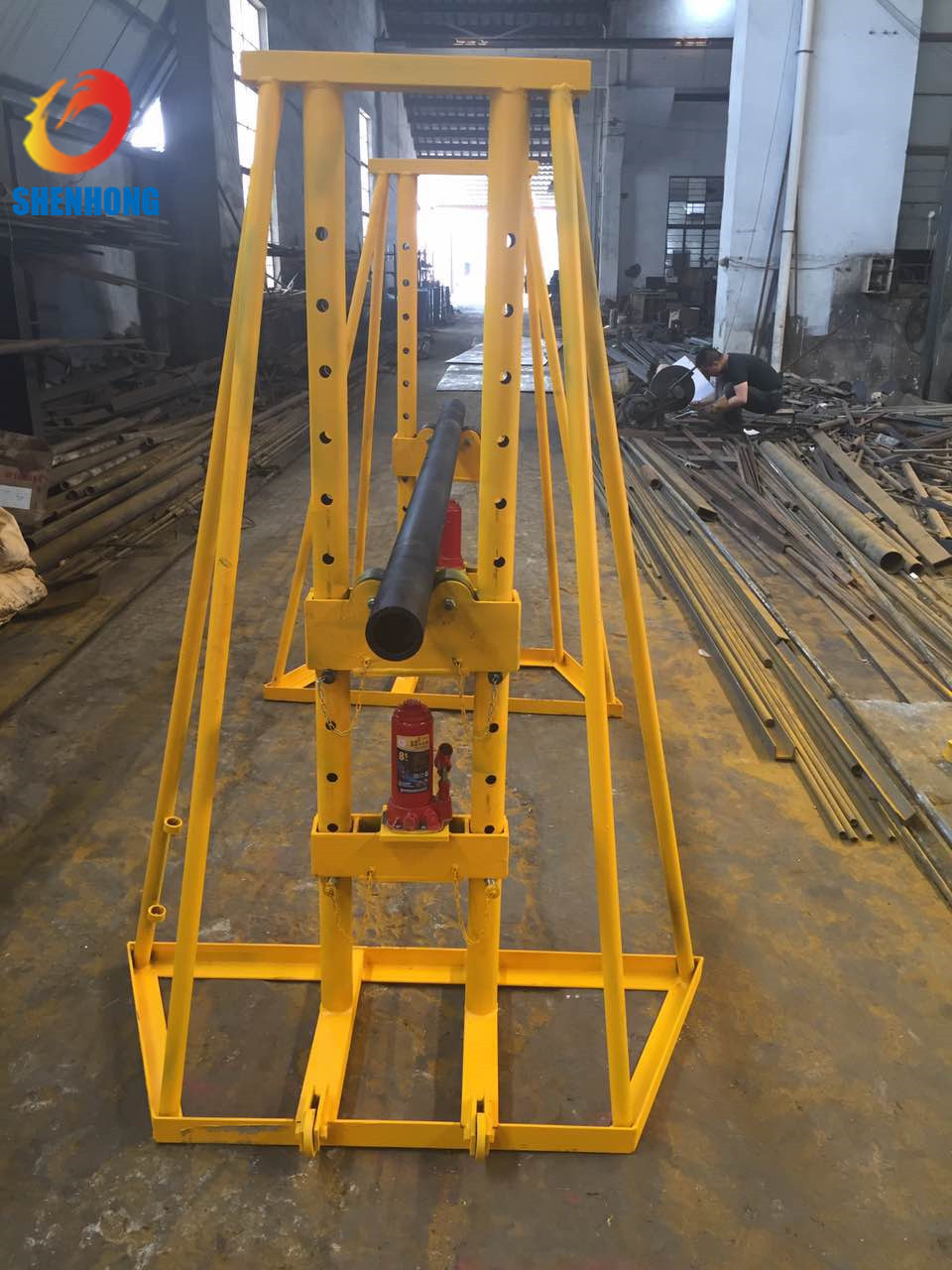

Hydraulic cable reel elevator 10 tons
Application: used in the line construction, when the wire is extended, use the positive plate wire, the lifting height can be flexibly adjusted.
Features: using hydraulic system, light and durable, suitable for manpower line use.
We can make products with special specification as your requirements.
Technical Data
Model Type | Capacity(T) | Suitable cable reel(mm) | Suitable reel weight(T) | Weight(kg) |
SI-5 | 5 | ≤Φ2400 | ≤5 | 180 |
SI-10 | 10 | ≤Φ2700 | ≤10 | 200 |
SI-15 | 15 | ≤Φ3200 | ≤15 | 350 |
SI-20 | 20 | ≤Φ3600 | ≤20 | 485 |
![]() |
Hydraulic Underground Cable Installation Tools10 tons hydraulic system light and durable Images |
