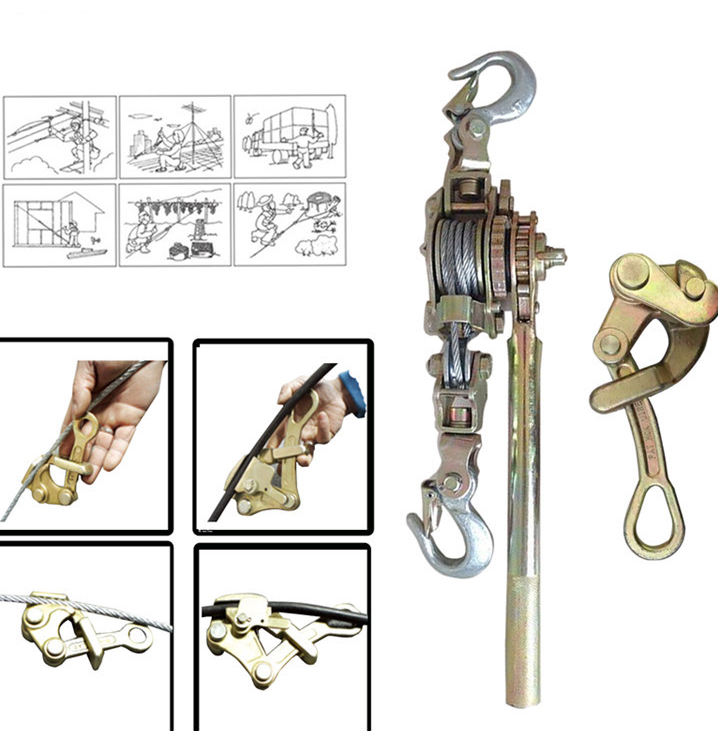

3 Ton Cable Pulling Clamp / Come Along Clamp NGK Wire Rope Grips S-3000

Product Categories
SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD
Contact Now

3 Ton Cable Pulling Clamp / Come Along Clamp NGK Wire Rope Grips S-3000

  • 1
  • 2

Brand Name : SHENHONG

Model Number : S-3000

Certification : ISO

Place of Origin : Jiangsu, China

MOQ : 10pcs

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 7 days after payment

Packaging Details : carton

Rated load(KN) : 30

Weight(kg) : 2.5

Cable : 16-32mm

Type : Wire Rope Grip Cable Grip

Material : Alloy Steel

Warranty : 1 year

Contact Now

3 Ton Cable Pulling Clamp / Come Along Clamp NGK Wire Rope Grips S-3000 ​

FEATURES & BENEFITS

  • Stay wire, catenary wire, Cu wire & contact wire

  • Manufactured from high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated

  • Special shaped pulling eyes suit all brands of strap pullers

SPECIFICATIONS

  • 8 - 22mm Cable OD

  • 30kN WLL

  • 120mm Jaw Length

  • 34mm Eye Width

  • Weight 3.0kg

Application: steel-cored aluminium strand wire, communication cable, copper wire, aluminium wire.

Product No. Applicable conducting wire(LGJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
LSJ-1 25-70 1000 6-14 1.05
LSJ -2 95-120 1500 13-18 1.40
LSJ -3 150-240 2500 17-24 2.9
LSJ -4 300-400 4000 25-37 4.0
LSJ -5 500-630 5000 30-40 6.7

Application: insulated conductor, bare copper wire, bare aluminium wire.

Product No. Applicable conducting wire(LGJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
SJKL-1 25-70 1000 Φ13.8-Φ17.8 1.55
SJKL-2 95-120 1500 Φ19.6-Φ21 2.4
SJKL-3 150-240 2500 Φ22.6-Φ26.4 3.6
SJKL-4 300-400 2500 Φ27.4-Φ29.8 5.4

Product No. Applicable conducting wire(GJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
SKD-1 25-50 2000 6-11 1.3
SKD-2 70-120 5000 12-16 1.7

Application: steel rope, steel strand, copper wire, insulated wire.

Product No Applicable wire diameter(mm) Rated load (Kg) Weight (kg)
S-1000 2.6-15 1000 0.7
S-2000 4-22 2000 1.5
S-3000 16-32 3000 2.6

3 Ton Cable Pulling Clamp / Come Along Clamp NGK Wire Rope Grips S-3000
