HL-300 Underground Cable Installation Tools Battery Powered Hydraulic Crimping Tool

SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD
Contact Now

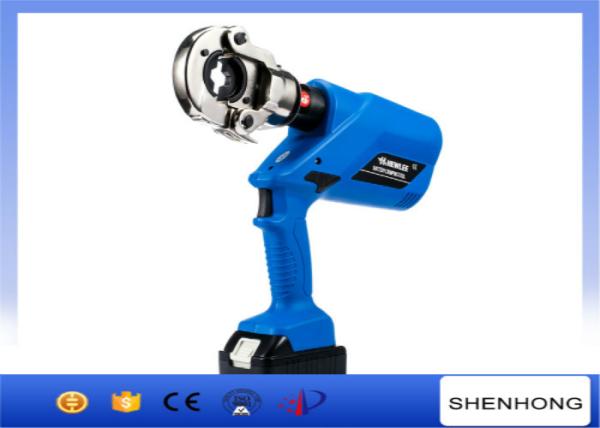

HL-300 Underground Cable Installation Tools Battery Powered Hydraulic Crimping Tool

  • 1
  • 2

Brand Name : SHENHONG

Model Number : HL-300

Certification : ISO

Place of Origin : Jiangsu,China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 1000pcs per month

Delivery Time : 7days after payment

Packaging Details : plastic box

Crimping type : Hexagon

Crimping range : 16-300mm2

Crimping force : 60KN

Stroke : 17mm

Name : HL-300 Battery Powered Hydraulic Crimping Tool

Dimension : 540x430x170mm

Contact Now

HL-300 Underground Cable Installation Tools Battery Powered Hydraulic Crimping Tool ​

Features:

1. Suitable for crimping terminals in power distribution project.
2. The lightest battery powered tool in the industry.
3. Could be operated with one hand.
4. Lightweight and endurable.
5. Automatic pressure relief when the pressure reaches rated value.
6. Crimping head could be rotated according to work circumstances.
7. Mechanical pressure relief ensures crimping performance.

Data Sheet

Crimping Force 60KN
Stroke 17mm
Crimps per charge 170 times (Cu 150mm2)
Crimping cycle 3-6s (depends on the size of cable)
Battery voltage 18V
Battery capacity 3.0Ah
Charging time 2hours
Package Steel case
Accessories
Crimping Dies. 16, 25, 35, 50, 70, 95, 120, 150, 185, 240,300mm2
Battery 2pcs
Charger 1pcs
Sealing ring of cylinder 1set
Sealing ring safety valve 1set

HL-300 Underground Cable Installation Tools Battery Powered Hydraulic Crimping Tool
