3 Ton Hydraulic Tensioner 5 Km / H Max Pulling For Stringing During Overhead Line Transmission
Brief Introduction
A transmission line tension stringing and aerial cableway erection job tension of the tension machine. The liner is fixed round groove of the main driven wheels arranged in parallel composition, and a diameter of the driven wheel driving wheel diameter 0.6 to 0.95, the master, the driven wheel two further fixed wheel and two or more groove substrate. When the wire is rotated by external traction rounds, only the large diameter drive wheel braking force that is applied. Selection round slot liner material of different coefficient of friction the wire by force, to avoid wire lantern, to protect the wire and release the tension wheel uniform wire. While the whole weight, smaller in size and lower cost.
Principle
Automatic hydraulic tensile machine manufacturer in Germany ZECK Features: Each friction wheel is driven by a hydraulic motor planetary gear transmission efficiency, frustrated not stop and then start producing sheet when the wire damage. Friction wheel with a special pad to protect the wires, replace the easy life assurance work up to 1200 hours. Patents have ground and pressure line features automatic rope fixed.
Application
It is used to string various conducts and earthwire.
Feature
1. Bullwheel with wearproof MC nylon lining segments.
2. infinitely variable tension control and constant tension conductor stringing .
3. it adapt Italian reducer .
4. spring applied hydraulic released brake acts automatically in case of hydraulic
failure to ensure safety
Main component
1. Engine :Domestic water –cooled engine .
2. Main pump/motor ,Chinese famous branded pump and motor .
3. Reducer :RR(Italian )
4. Radiator: AKG
5. Hydraulic instrument :
6. It can choose import engine.
Technical Data
| Model Type | YQZ30 |
| Overall Size(MM) | 3560 ×1600 ×2220 |
| Weight(KG) | 1700 |
| Max Tension(KN) | 30 |
| Max Continual Tension(KN) | 25 |
| Max Velocity(km/h) | 5 |
| Diameter of Tension wheel(mm) | 1200 |
| Solt No. of Tension wheel | 5 |
| Rated Pulling Force (KN) | 30 |
| Max Pulling Speed(km/h) | 5 km/h |
| Max dia of wire | Φ32mm |
| Engine Power | 11KW/ 2200 r/min |
| Voltage | 12V |

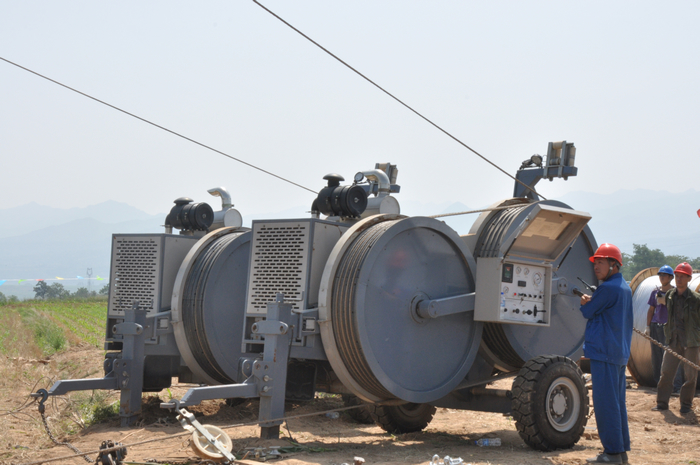

Practical Application
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
